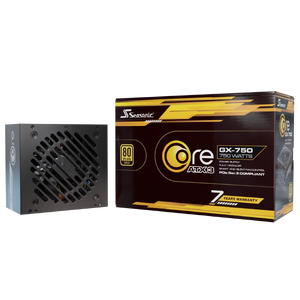

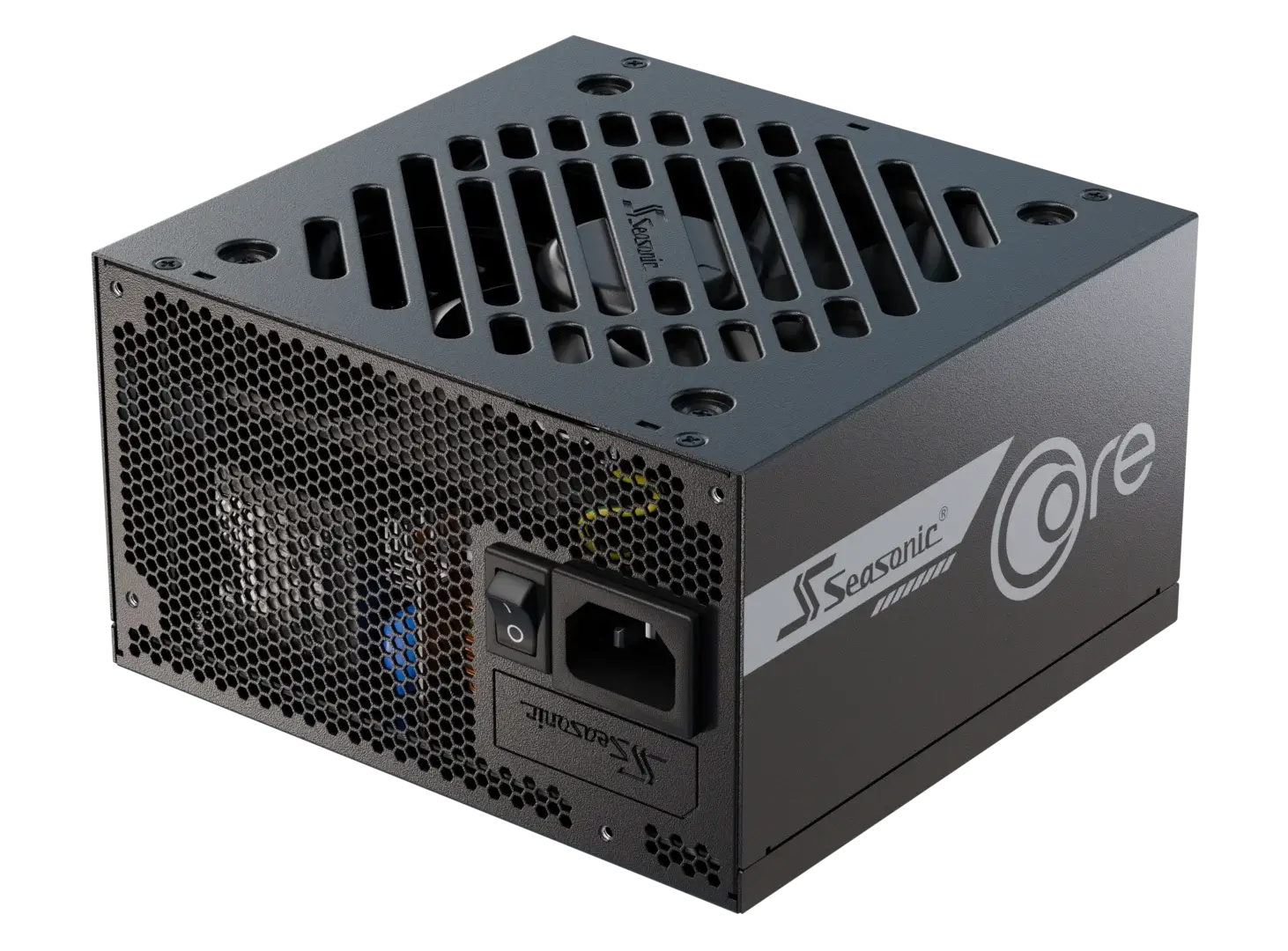

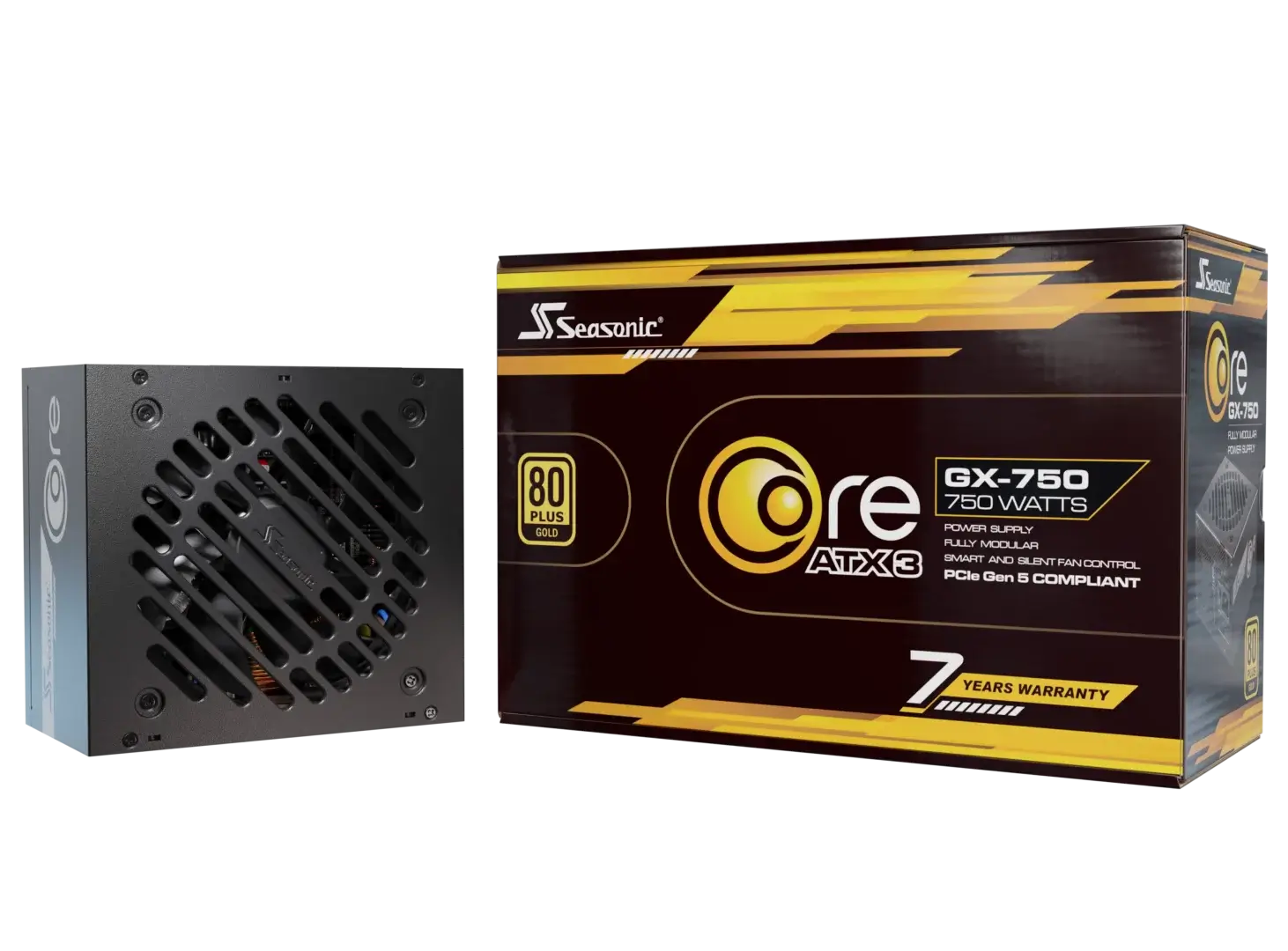

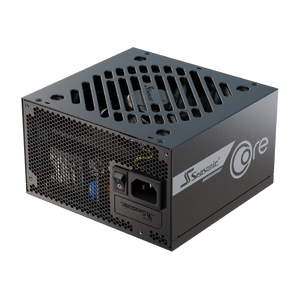

Seasonic Core GX-750 ATX3 80 Plus Gold Full Modular 750W PSU (SRP-CGX751-A5A32SF)
Free Shipping
Sale Price
NOW $265.03Earn $265.03 * 10% = $26.50 Splash Pass Credit
CORE GX ATX 3 (2024)
The updated Seasonic CORE GX ATX3 series complies with the latest ATX3 standards and includes four output ranges from 1000W to 650W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS Gold certified Seasonic's Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm fluid dynamic bearing fan is combined with Seasonic's Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level.
SPECIFICATIONS
Technical Specifications | ||
80PLUS | Gold | |
Cybenetics Efficiency Level | TBA | |
Cybenetics Noise Level | TBA | |
Form Factor | ATX/EPS | |
Fan Information | Fan Size | 120 mm |
Fan Control | Smart and Silent Fan Control | |
Fan Bearing | Fluid Dynamic Bearing | |
Life Expectancy | 25,000 hours at 40 C, 15 % 65 % RH | |

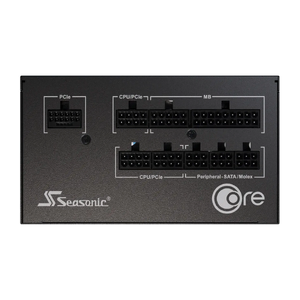

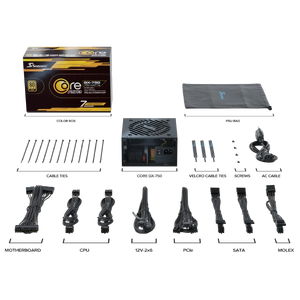

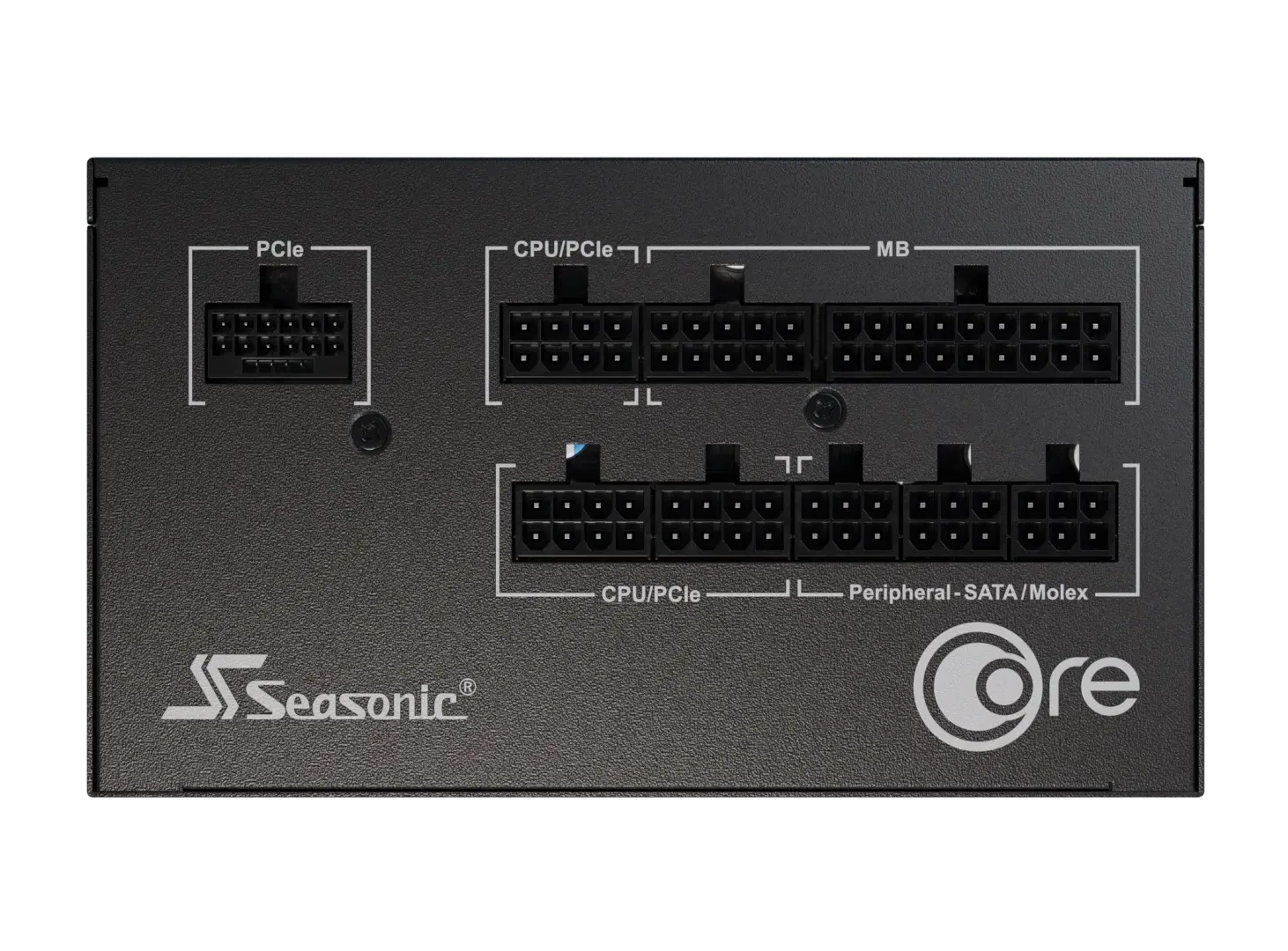

Cable Information | Modularity | Fully Modular |
Cable type | Individual Black Cables with Braided Pattern | |
Electrical Features | Operating Temperature | 0 - 50 C (derating from 100% to 80% from 40 C to 50 C linearly) |
MTBF @ 25 C, excl. fan | 100,000 hours | |
AC Input | Full Range | |
Protection | OPP, OCP, OTP, OVP, SCP, UVP | |
Safety and Environmental | Safety and EMC | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
Warranty | 7 Years |
Power Output | ||||||
AC Input | Voltage: 100 V - 240 V | |||||
Current: 10 - 5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
100 W | 744 W | 3.6 W | 15 W | |||
Total continuous power | 750 W |
