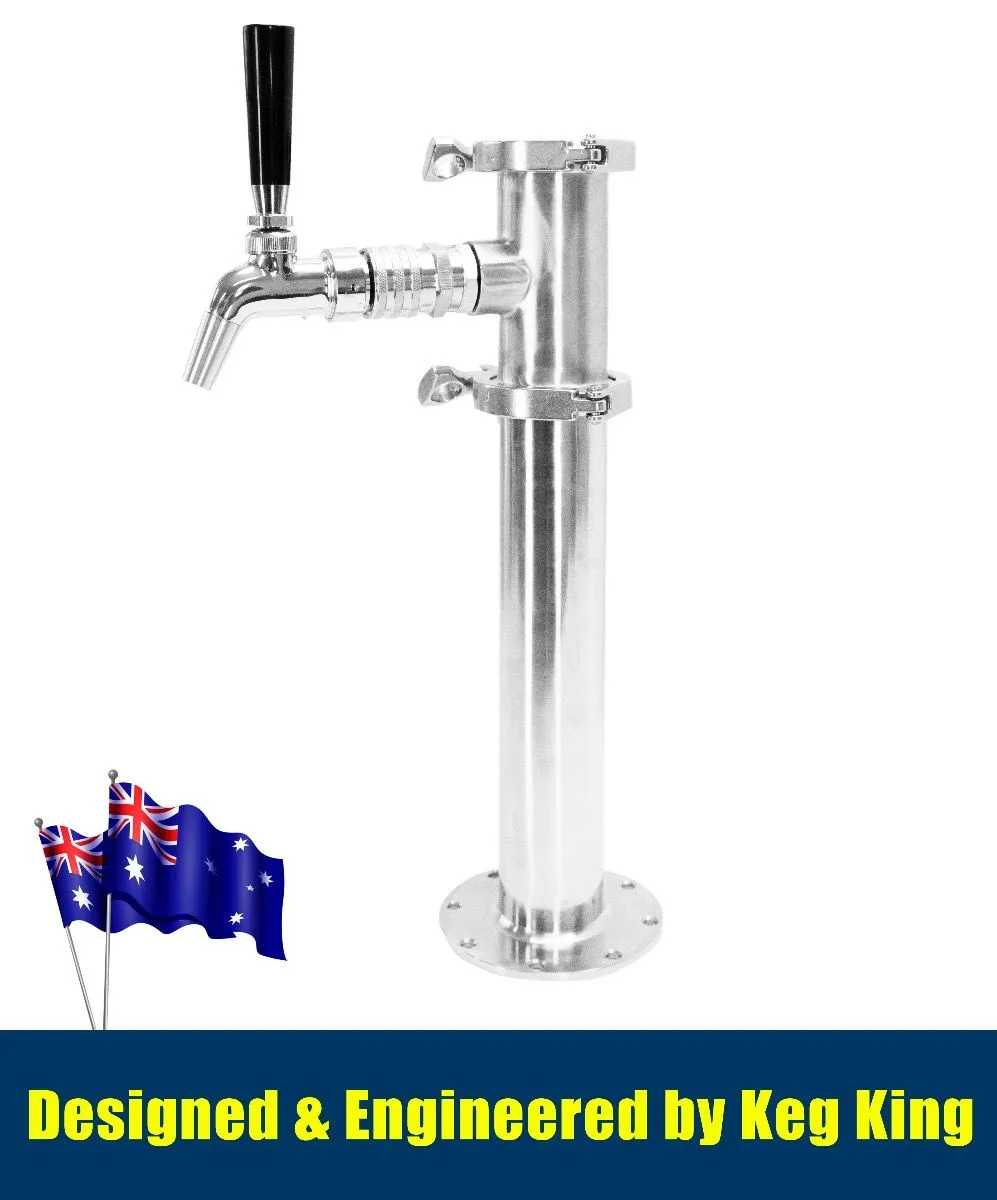

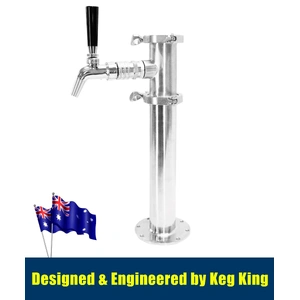

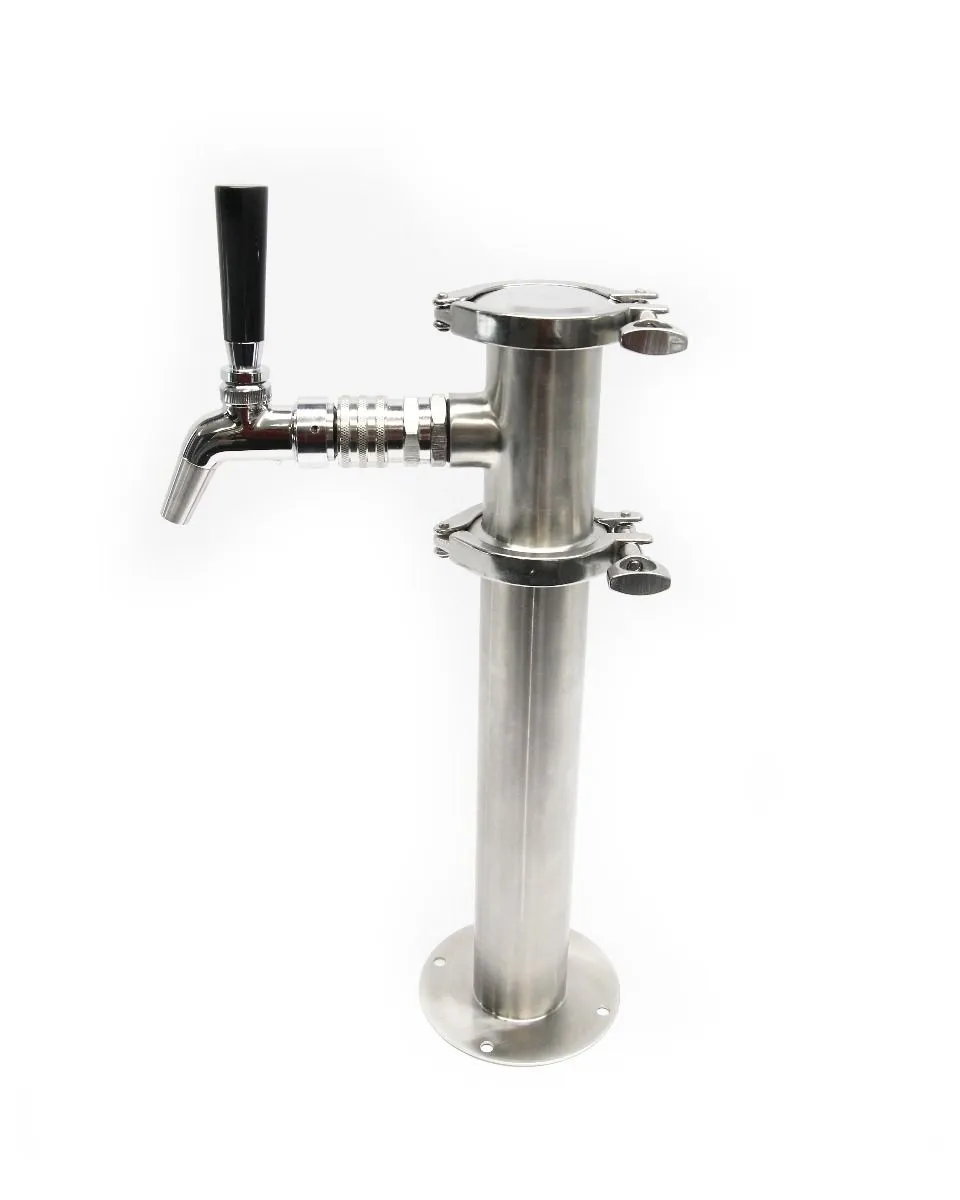

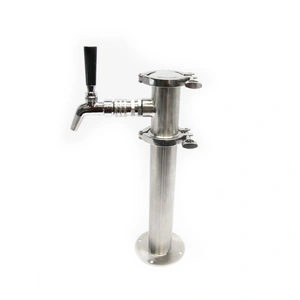

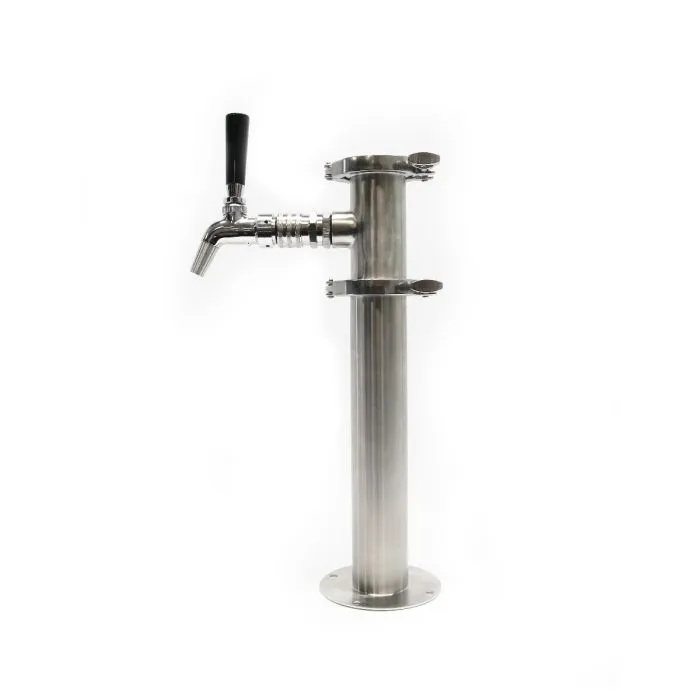

Beer Font Tower - Single Tap Modular Beer Font with Tap

The Keg King Single Tap Modular Beer Font Tower kit provides a fantastic looking, professional finish to any bar or beverage sales location.
These fonts work great for mounting on our Super Deluxe series of professional grade under-bar fridges.
Each Keg King Modular Font is constructed from 304 Stainless Steel and manufactured to be assembled with 2 inch tri-clover fittings.
Keg King Modular Font Kits are designed to work with our 3/4 inch Kinglok fittings that provide users the ability to disconnect their taps quickly and easily for maintenance or cleaning.

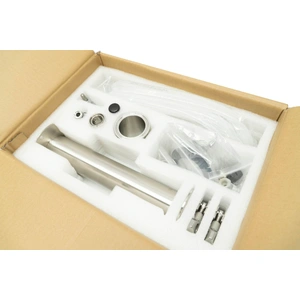

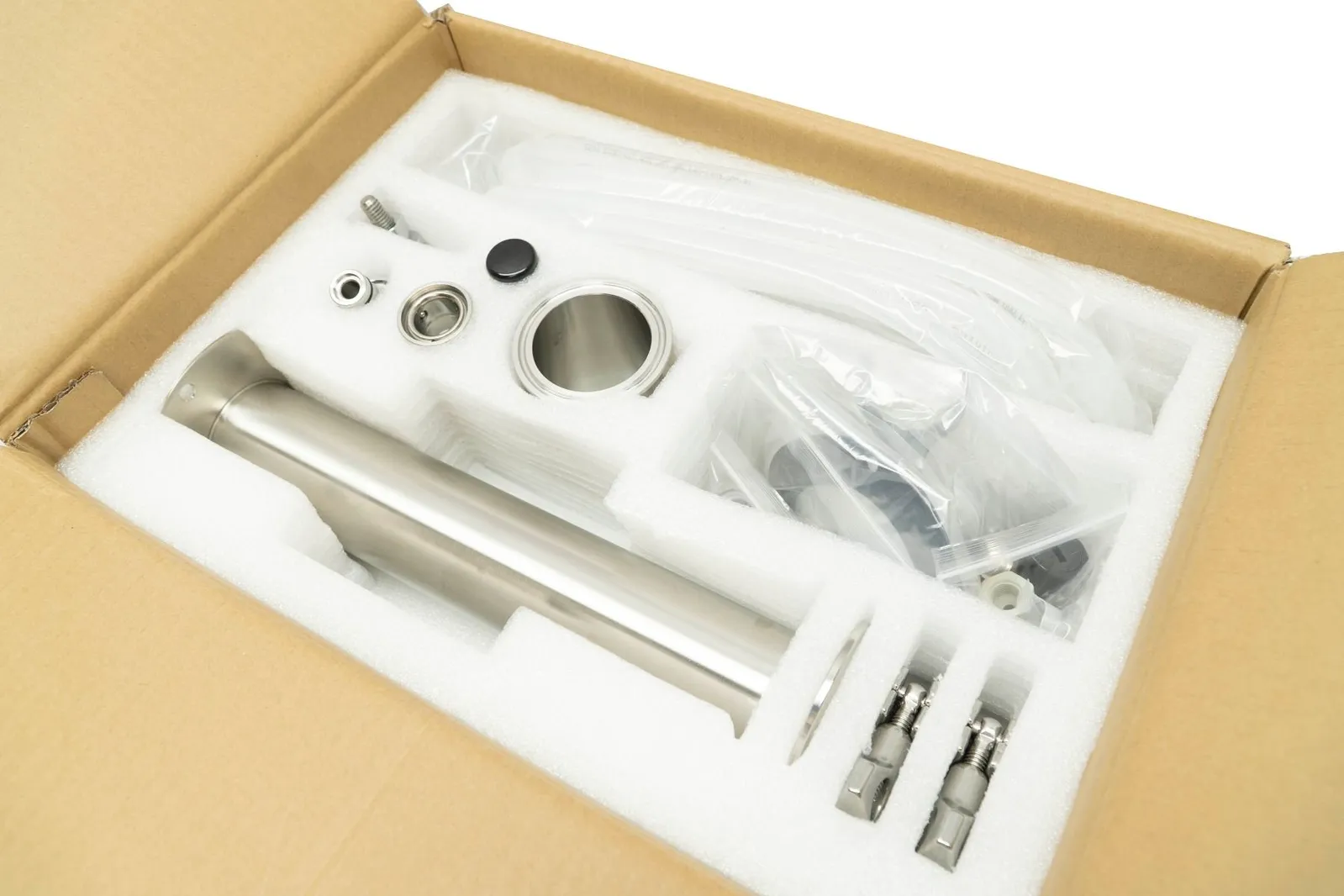

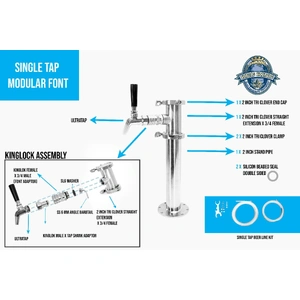

This Single Tap Modular Font Kit comes with everything you need to set up a single tap modular font and includes the following:
1x Ultratap
1x Modular Font 2 inch Stand Pipe
1x 2 inch Tri Clover Straight Extension x 3/4 Female
2x 2 inch Tri Clover Silicone o-ring Beaded Seal Double Sided
1x 2 inch Tri Clover End Cap (no hole)
1x KingLok Female x 3/4 Male (Font Adaptor)
2x 2 inch Tri Clover Clamps
1x SL6 washer
1x 6mm Angle barbtail Stainless Steel
1x Single Beer Line Set:
- 4m of 5mm evafresh beer line part code 5207
1x Kinglok Male Tap Shank Adaptor
1x Premium Liquid Disconnect Black
1x Premium Gas Disconnect Grey

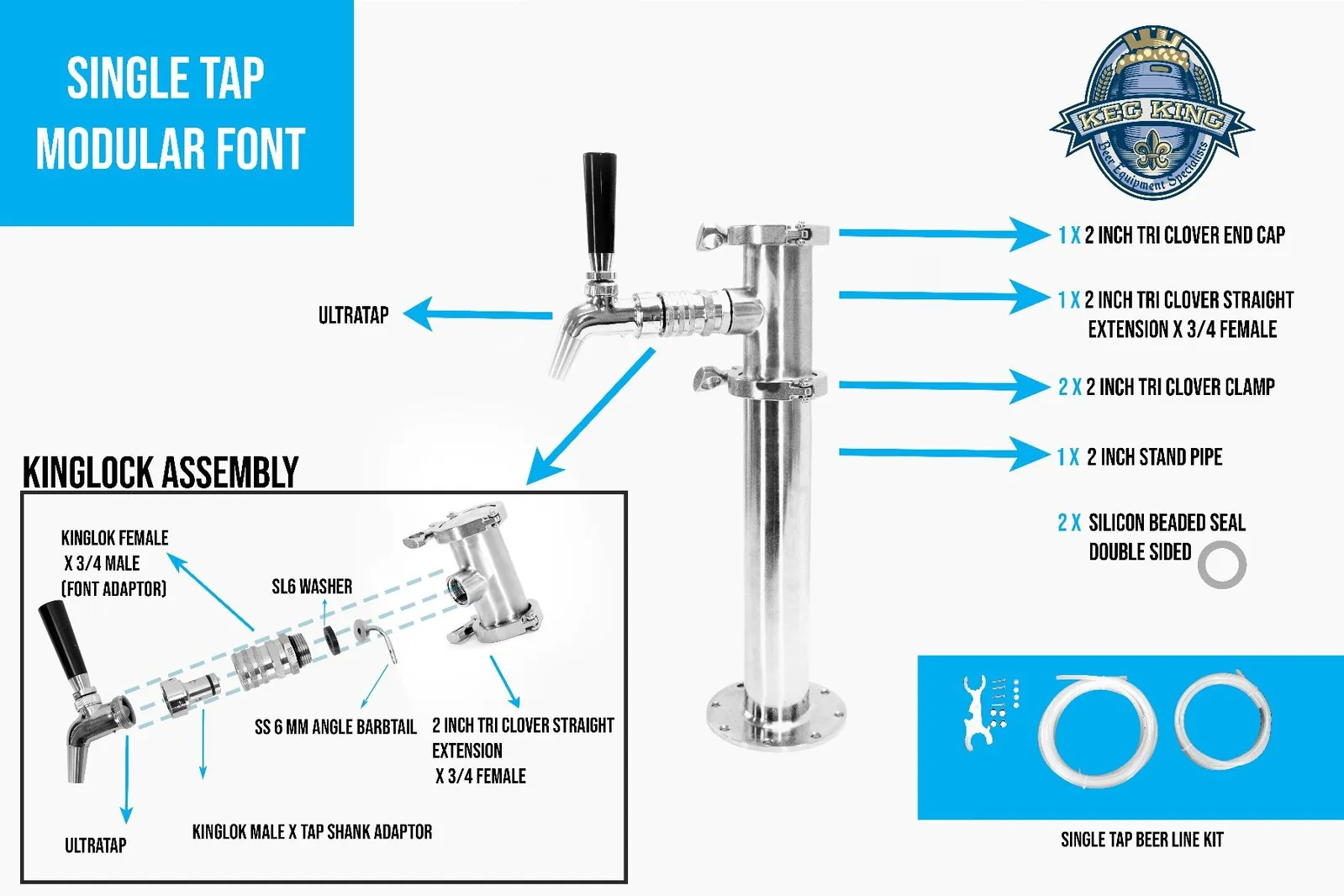

Instruction diagram available HERE
Material = 304 Stainless Steel

Dimensions:
Height = 380mm to top of font (not including tap handles)
Width = 100mm
Works well with the KegMasterSuper Deluxe ONE Door fridge
If you have your fridge mounted under a bench, we recommend using our Under-Bench Telescopic Font Adaptor

PLEASE NOTE: The 3/4inch Male threading on the KingLok fitting contains a black silcone o-ring at the top of the threads. This o-ring DOES NOT need to seal up against the top of the 3/4inch female modular font port. The o-ring will normally sit slightly above because of the Kinglok fitting compressing against the SL6 washer. This is normal. If you find the o-ring visually displeasing you can remove it from the Kinglok fitting.
